Roll-on Roll-off containers for hook-lift systems

Roll-on Roll-off container "Standard type" - smoothline construction

(Kopie 4)

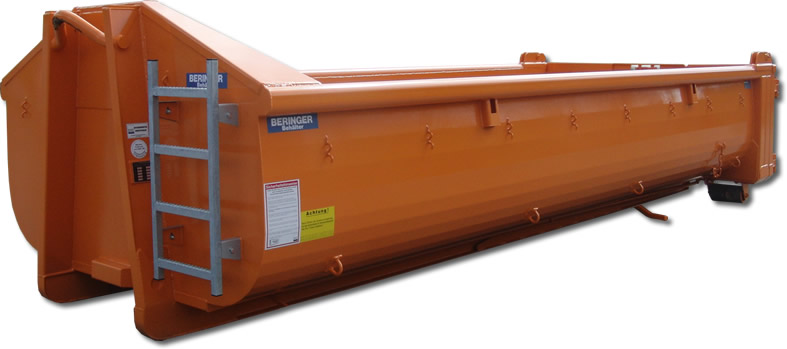

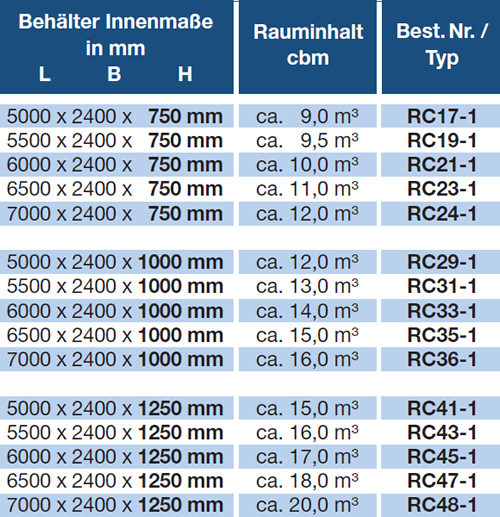

Roll-on Roll-off containers smoothline construction "Standard" height: 750 - 1250 mm

  • Height: 750 – 1250 mm
  • Manufactured according to DIN 30 722
  • Convex side panels
  • Bottom (4 mm), sidewalls, front and doors (3 mm) made of S 460 MC
  • Hook ø 60 mm
  • Sub frame made of IPN 180
  • Double twin door with middle lock
  • Rollers with grease nipples ø 160 mm
  • Set of net hooks welded all around
  • Ladder at front side (optional)
  • Additional lock for safety door opening according to accident prevention regulations
  • Primed and coated in RAL colour of your choice

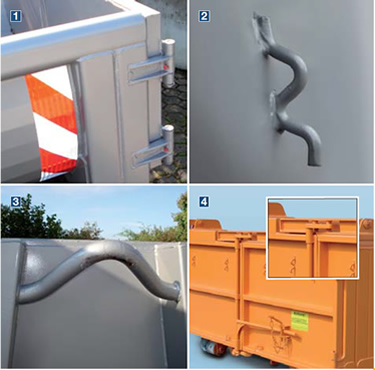

Quality marks

1          special reinforcement at rear side

2.         high-quality net hooks

3.         Hook ø 60 mm

4.         heavy duty doors, notches and rollers

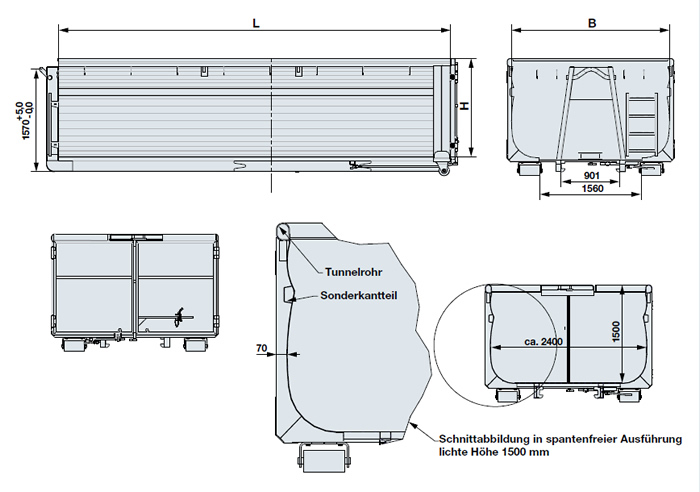

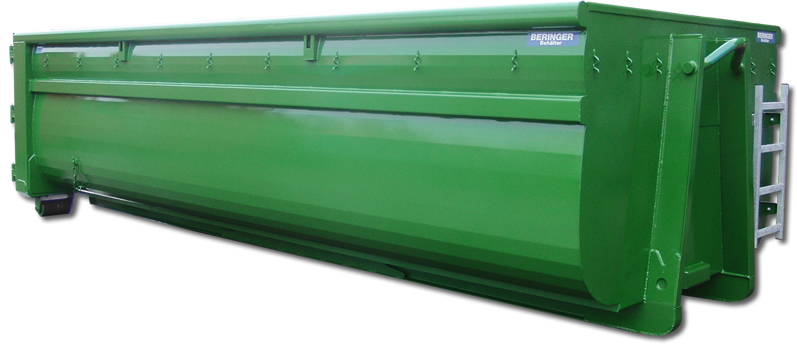

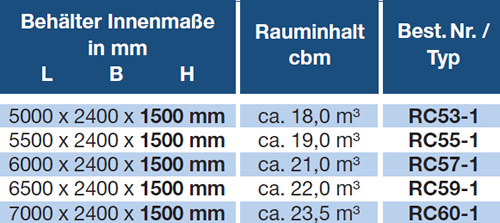

Roll-on Roll-off container "Standard type" smoothline construction Height: 1500 mm

  • Height: 1500 mm
  • Manufactured according to DIN 30 722 or local standard
  • Two convex side panels

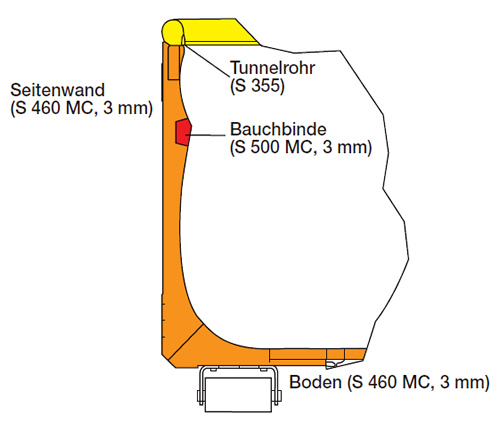

  • Bottom (4 mm), sidewalls, front and door (3 mm) made of high grade steel S 460 MC
  • Hook ø 60 mm;
  • Sub frame made of IPN 180;
  • Additional rolled fiber belt made of S 500 (3 mm);
  • Double twin door with middle lock;
  • Rollers with grease nipples ø 160 mm;
  • Set of net hooks welded all around;
  • Ladder at front side
  • Additional lock for safety door opening; according to accident prevention regulations
  • Primed and coated in RAL colour of your choice

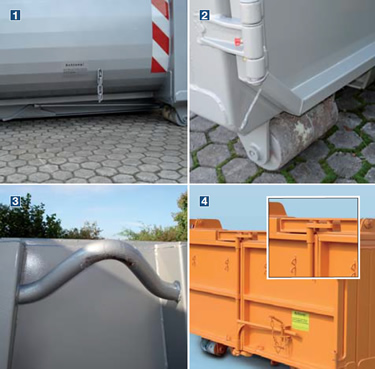

Quality marks

  1.  Additional lock for safety door opening; according to accident prevention regulations
  2.  rollers with grease nipples
  3. Hook ø 60 mm;

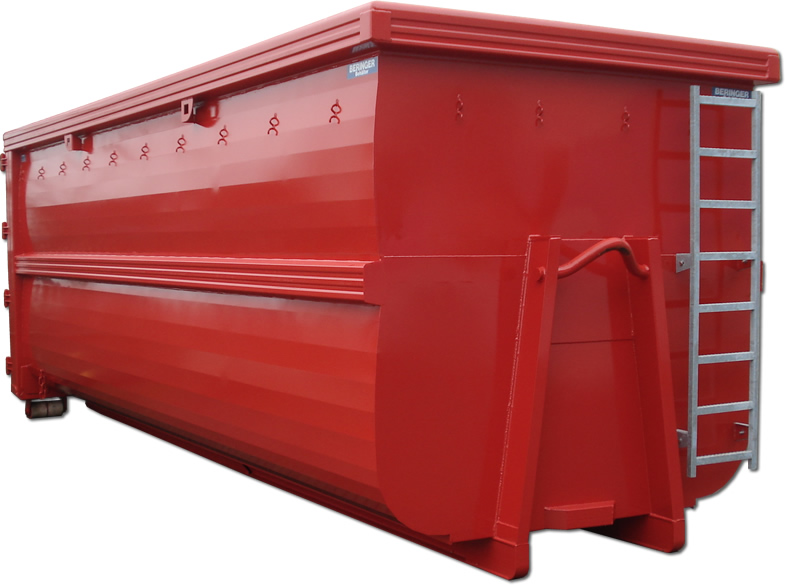

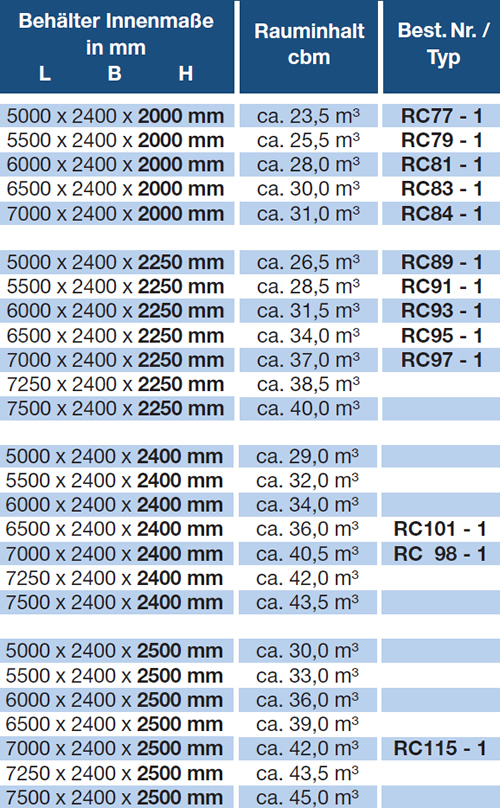

Roll-on Roll-off containers Standard type - smoothline construction Height: 2000 - 2500 mm

  • Height: 2000 – 2400 mm
  • Manufactured according to DIN 30 722
  • Two convex side panels
  • Bottom (4 mm), sidewalls and doors (3 mm)  made of high grade steel S 460 MC (3 mm)
  • Hook ø 50 mm
  • Sub frame made of IPN 180
  • Additional rolled fiber belt made of S 500 MC (3 mm)
  • Top edge profile made of S 700 MC (3 mm)
  • Double twin doors with middle lock
  • Rollers with grease nipples ø 160 mm
  • Set of net hooks welded all around
  • Ladder at front side
  • Additional lock for safety door opening
  • Primed and coated in RAL colour of your choice

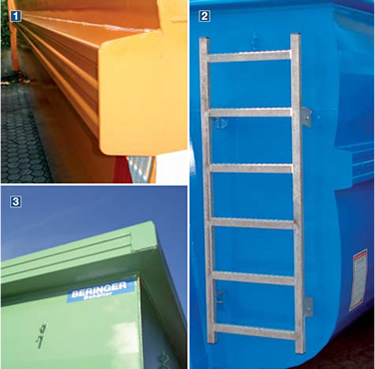

Quality marks

  1. additional fiber belt  made of high tensile steel S 500 MC
  2. heavy duty ladder
  3. top edge profile made of high tensile steel S 700 MC



Roll-on Roll-off container "Heavy Duty" type - smoothline construction

Roll-on Roll-off containers Heavy-Duty Type Height: 750 - 1250 mm

  • Height 750 – 1250 mm
  • Manufactured according to DIN 30 722
  • Convex side panels
  • Bottom made of wear-resistant steel 450 HBW (4 mm)
  • Sidewalls, front and doors made of wear-resistant steel 450 HBW (4 mm)
  • Hook ø 60 mm
  • Sub frame made of IPN 180
  • Top frame made of special tunnel pipe 125/95/6 (S 355)
  • Double Twin door with middle lock
  • Rollers with grease nipples ø 160 mm
  • Set of net hooks welded all around
  • Ladder at front side (optional)
  • Additional lock for safety door opening
  • Primed and coated in RAL colour of your choice



Quality marks

  1. special reinforcement at rear side
  2. high-quality net hooks
  3. Hook ø 60 mm
  4. heavy duty doors, notches and rollers

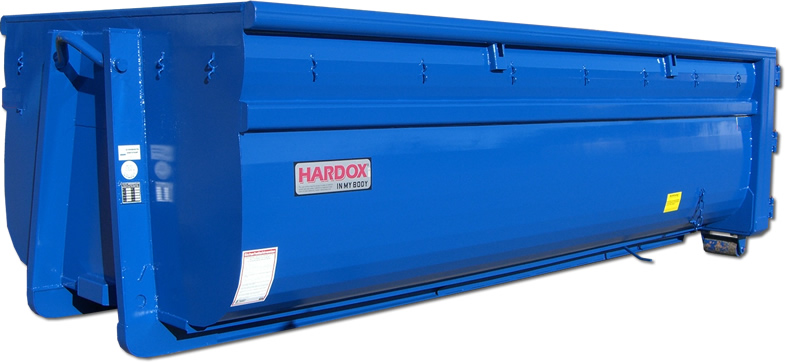

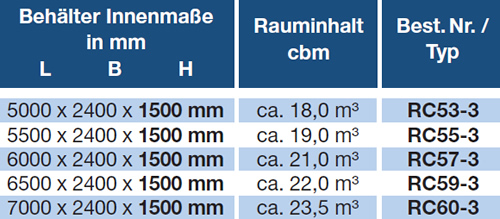

Roll-on Roll-off containers Heavy-Duty type- smoothline construction Height: 1500 mm

  • Height 1500 mm
  • Manufactured according to DIN 30 722
  • Two convex side panels
  • Bottom made of wear-resistant steel 450 HBW (4 mm)
  • Sidewalls, front and doors made of wear-resistant steel 450 HBW (3 mm)
  • Hook ø 60 mm
  • Sub frame made of IPN 180
  • Additional fiber belt made of wear-resistant steel 450 HBW (3 mm)
  • Top frame made of special pipe 125/95/8 (S 355)
  • Rollers with grease nipples ø 160 mm
  • Set of net hooks welded all around
  • Ladder at front side
  • Additional lock for safety door opening according to accident prevention regulations,
  • Primed and coated in RAL colour of your choice

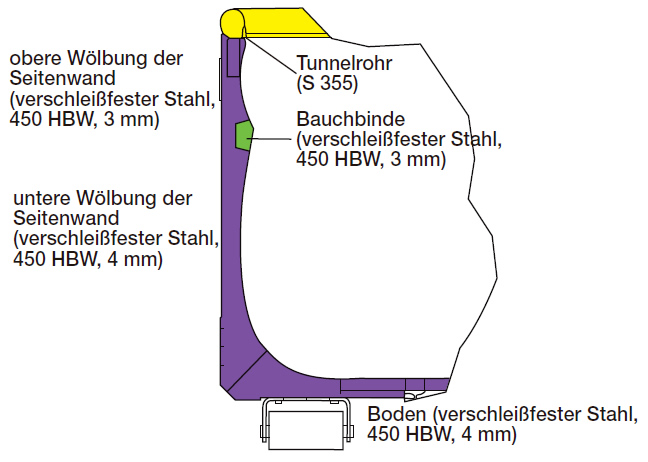

Materials used for Heavy Duty Type container Height: 1500 mm

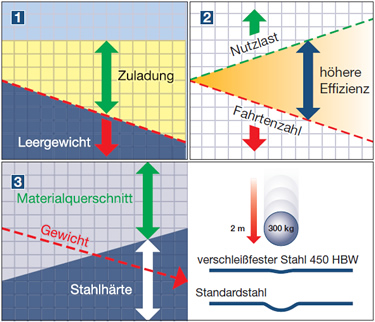

Quality marks

  1. Higher payload at lower empty weight
  2. fuel savings throught aerodynamic shape
  3. less destorions compared to standard models

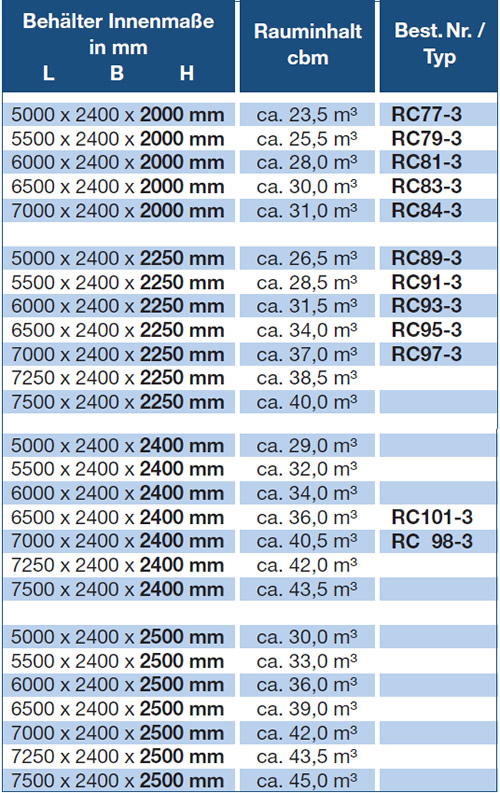

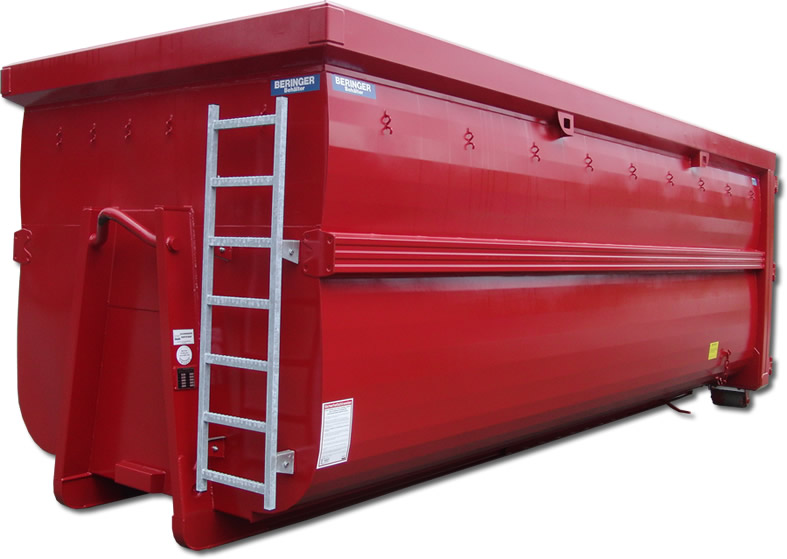

Roll-on Roll-off containers Heavy Duty Type - smoothline cinstruction Height: 2000 - 2500 mm

  • Height 2000 – 2400 mm
  • Manufactured according to DIN 30 722
  • Two convex side panels
  • Bottom made of wear-resistant steel 450 HBW  (4 mm)
  • Sidewalls, front and doors made of wear-resistant steel 450 HBW (3 mm)
  • Hook ø 60 mm
  • Sub frame made of IPN 180 mm
  • Additional rolled fiber belt made of wear-resistant steel 450 HBW (3 mm)
  • Top frame made of wear-resistant steel 450 HBW (3 mm)
  • Rollers with grease nipples ø 160 mm
  • Set of net hooks welded all around
  • Ladder at front side
  • Additional lock for safety door opening
  • Primed and coated in RAL colour of your choice

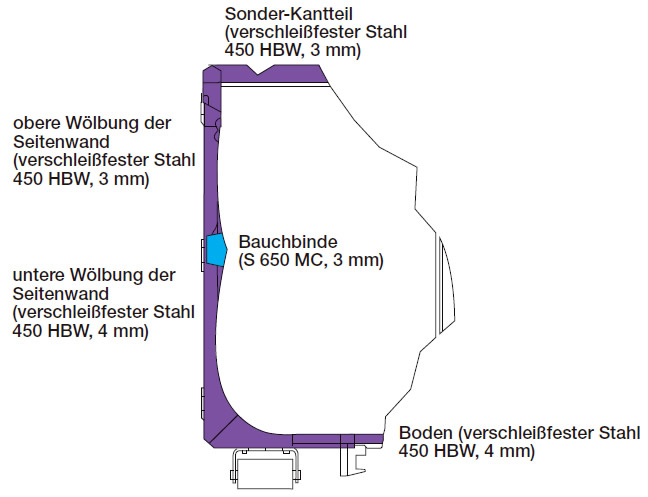

Materials

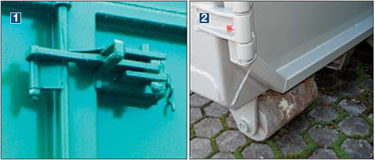

Quality marks

  1. with BERINGER Top-Lock
  2. rollers with grease nipples

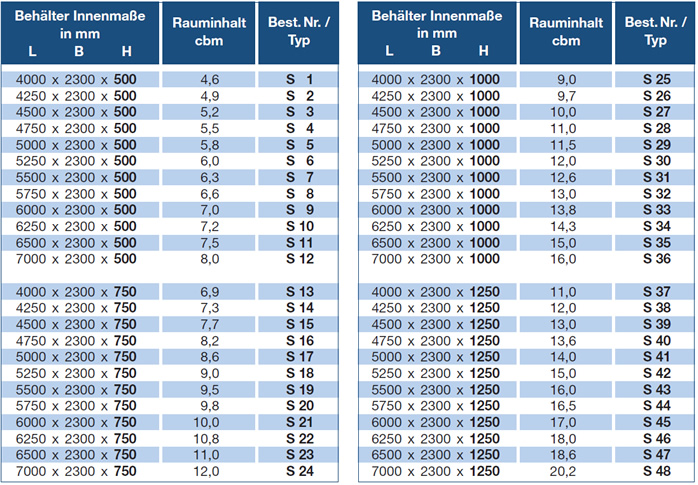

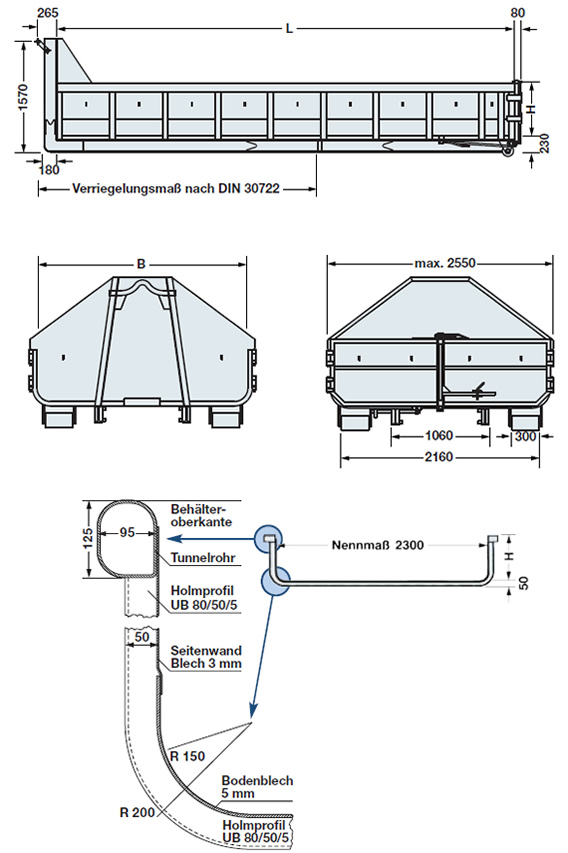

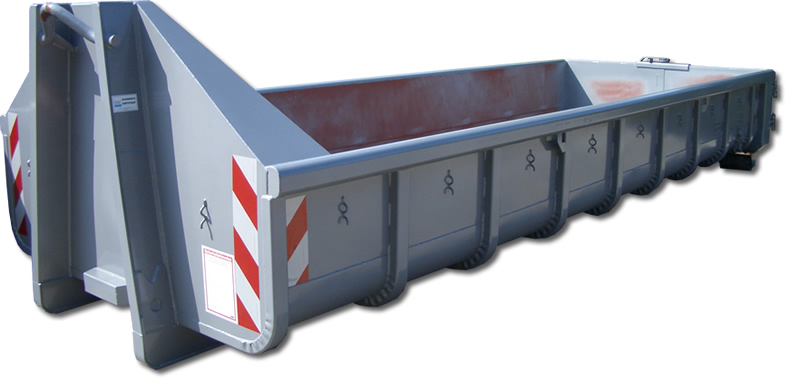

Roll-on Roll-off container with ribs and round bottom-sidewall connection "Standard" Height: 500 - 1250 mm

  • Manufactured according to DIN 30722
  • With round bottom-sidewall connection made of high tensile steel bottom (5 mm
  • sidewalls (3 mm), front (4 mm)
  • Vertcal crimps
  • Rounded pipes as sidewall reinforcement  made of UB 80/50/5 in distance of 750 mm
  • Top edge profile made of special pipe 125/95/6 (S 355)
  • Rollers with grease nipples
  • Door  frame made of pipe 60/40/4
  • Net hooks welded all around
  • Additional lock (adjustable) according to accident prevention regulations
  • Type label and certificate according to ZH 1/589
  • Primed and coated in RAL colour of your choice

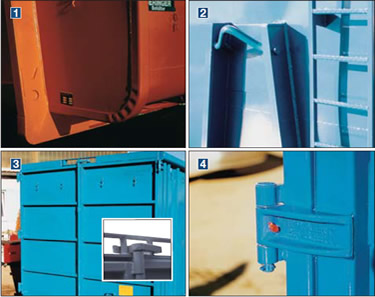

Quality marks

  1. Additional reinforcement at hook
  2. heavy duty hook and front
  3. heavy duty doors, notches rollers
  4. all flexible parts are equipped with grease nipples

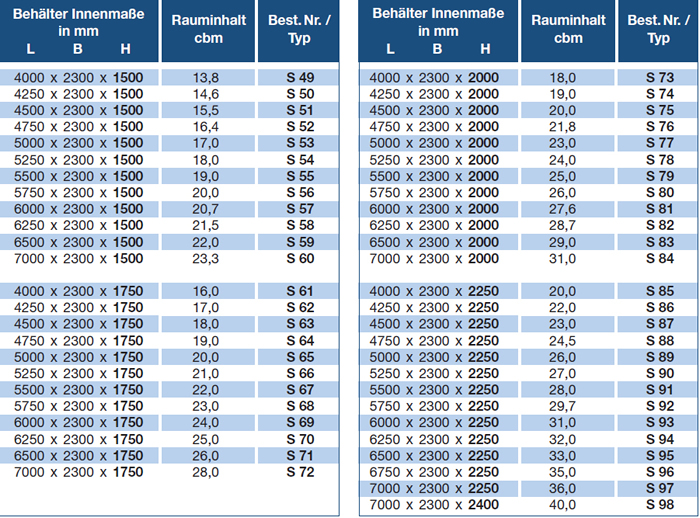

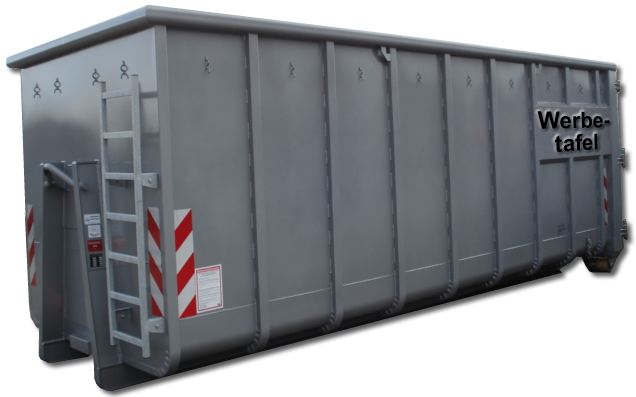

Roll-on Roll-off containers with ribs and roud bottom sidewall connection "Standard" Height: 1500 - 2400 mm

  • Manufactured according to DIN 30722
  • With round bottom-sidewall connection made of high tensile steel bottom (5 mm), sidewalls (3 mm), front (4 mm)
  • Vertcal crimps
  • Rounded pipes as sidewall reinforcement  made of UB 80/50/5 in distance of 750 mm
  • Top edge profile made of special pipe 125/95/6 (S 355)
  • Door frame made of pipe 60/40/4
  • Rollers with grease nipples
  • Net hooks welded all around
  • Hook ø 60 mm
  • Additional lock (adjustable) according to accident prevention regulations
  • Type label and certificate according to ZH 1/589
  • Primed and coated in RAL colour of your choice

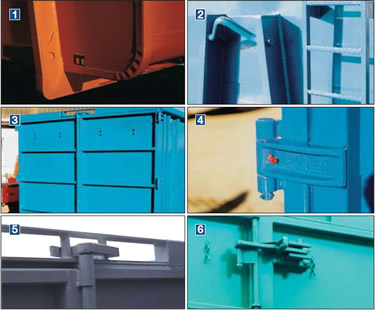

Quality marks

  1. Additional reinforcement at hook
  2. heavy duty hook and front
  3. heavy duty doors, notches rollers
  4. all flexible parts are equipped with grease nipples
  5. with standard double “S” lock
  6. or BERINGER “Top Lock”

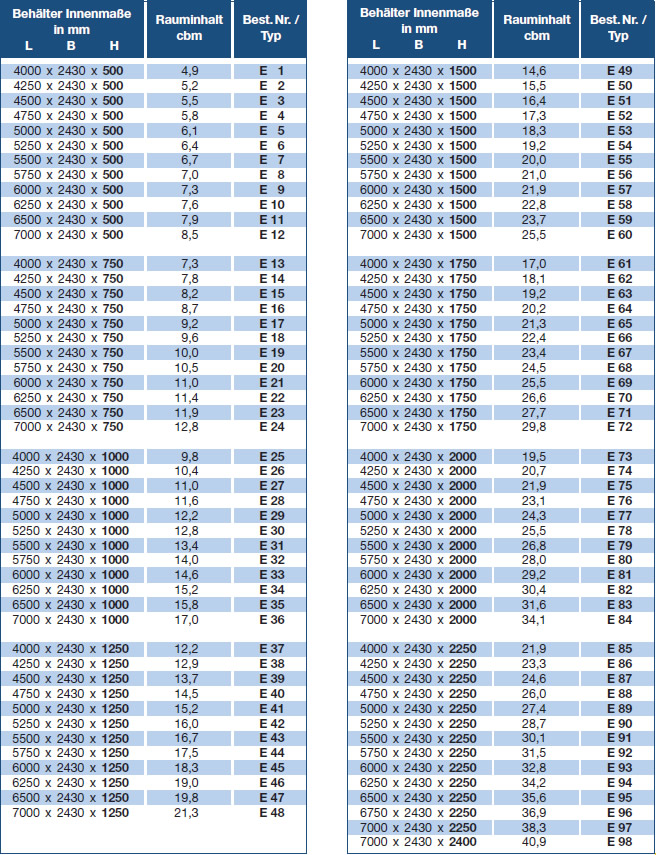

Roll-on Roll-off containers with ribs and rectangular bottom-sidewall connection "Standard" Height: 500 - 2400 mm

  • Manufactured according to DIN 30722
  • Bottom 5 mm, Sidewalls 3 mm, front 4 mm made of wear-resistant steel S 235
  • Rib distance 750 mm
  • Top edge profile made of special tunnel pipe 125/95/6 (S 355)
  • Door frame made of pipe 60/40/4
  • Rollers with grease nipples
  • Net hooks
  • Hook ø 60 mm
  • ladder (from 1500 mm height)
  • Additional lock (adjustable) according to accident prevention regulations
  • With type label and certificate
  • Primed and coated in RAL colour of your choice

Roll-on Roll-off container High-volume container

  • Manufactured according to DIN 30722
  • Distance ribs: 750 mm
  • Welded all around
  • Ladders frontsides (left and right)
  • Door hinges with grease nipples
  • Rollers made of steel or polyamide
  • Special reinforcement  at rear side
  • Additional lock
  • Net hooks
  • Door profile made of 60/40/4
  • Bottom and sidewalls made of S 355
  • Descaled
  • 2x primed and coated in RAL colour of your choice

Quality marks

  1. Additional reinforcement at hook
  2. heavy duty hook and front
  3. heavy duty doors, notches rollers
  4. all flexible parts are equipped with grease nipples
  5. with standard double “S” lock
  6. or BERINGER “Top Lock”
[Translate to English:] Auch in der spantenfreien Ausführung erhältlich
[Translate to English:] Auch in der spantenfreien Ausführung erhältlich
[Translate to English:] Spezialanfertigung für den individuellen Einsatz

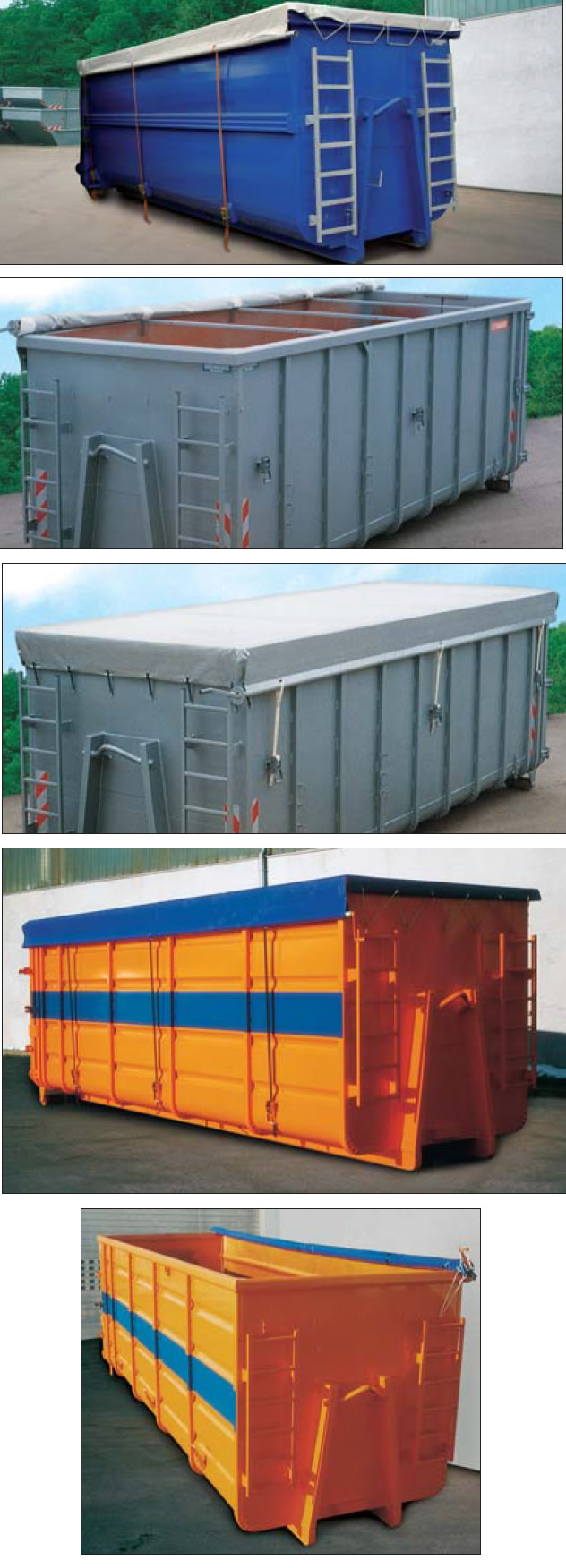

[Translate to English:] BERINGER Großvolumenbehälter mit Rollplanenabdeckung und Klapptritten

additionals

Roll-on Roll-off containers Roof and cover systems

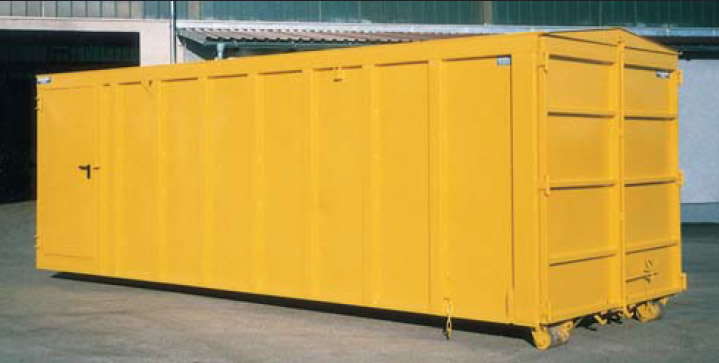

roof - slightly gabled

  • welded roof made of  2 mm steel sheets S 235 mit draiage at side

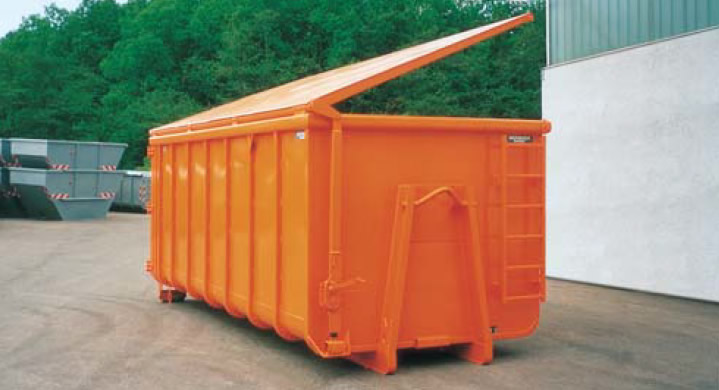

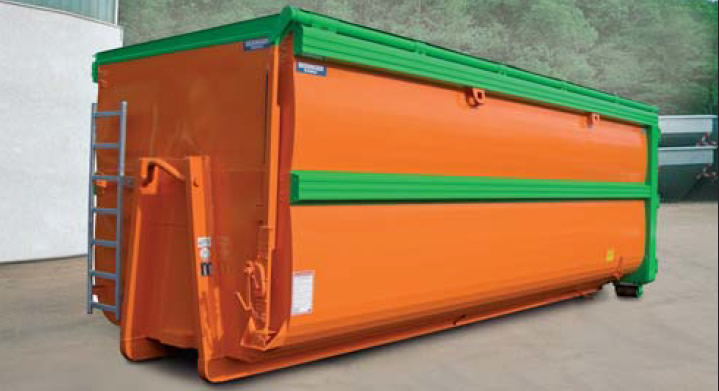

roof with winder

  • Roofing construction with round pipe
  • with lock
  • High quality winder with  CE-certificate,
  • opening angle approx.:. 85
  • Roofing is rain-water proof
  • Integrated door lock

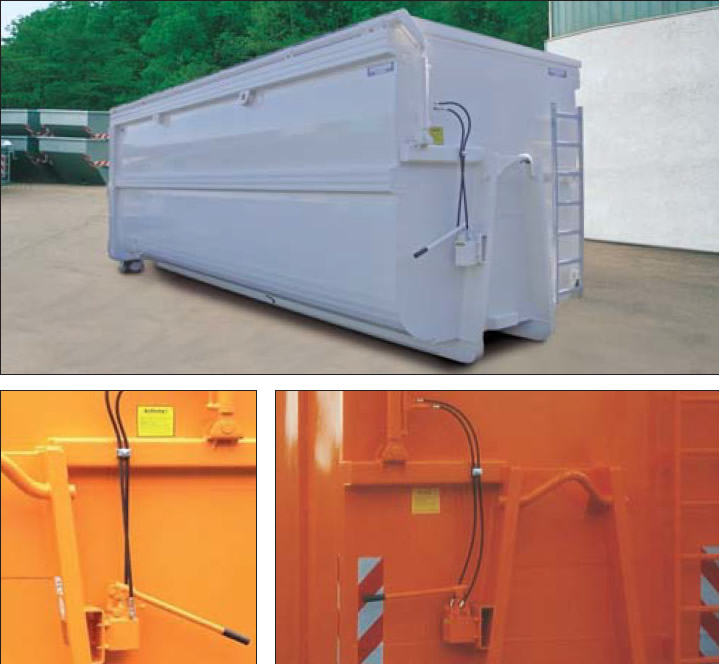

Roof with hydraulics

  • Roofing construction with round pip
  • Hydraulic pump with hydraulic jack and speed control valve
  • Approved according to Accident Prevention standards
  • Easy handling
  • Opening angle approx.: 95 °
  • Roofing is rain water proof
  • Integrated door lock

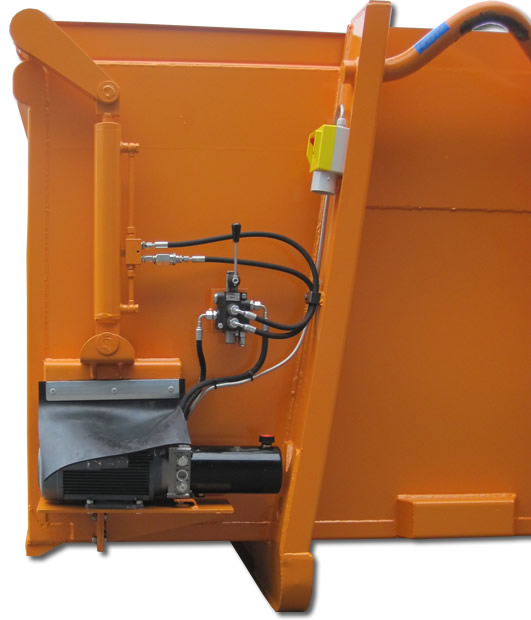

Roof with electro hydraulics

  • Roofing as described above but opening with power unit (220 V)
  • Opening angle max. 95°
  • Option: additional hand pump

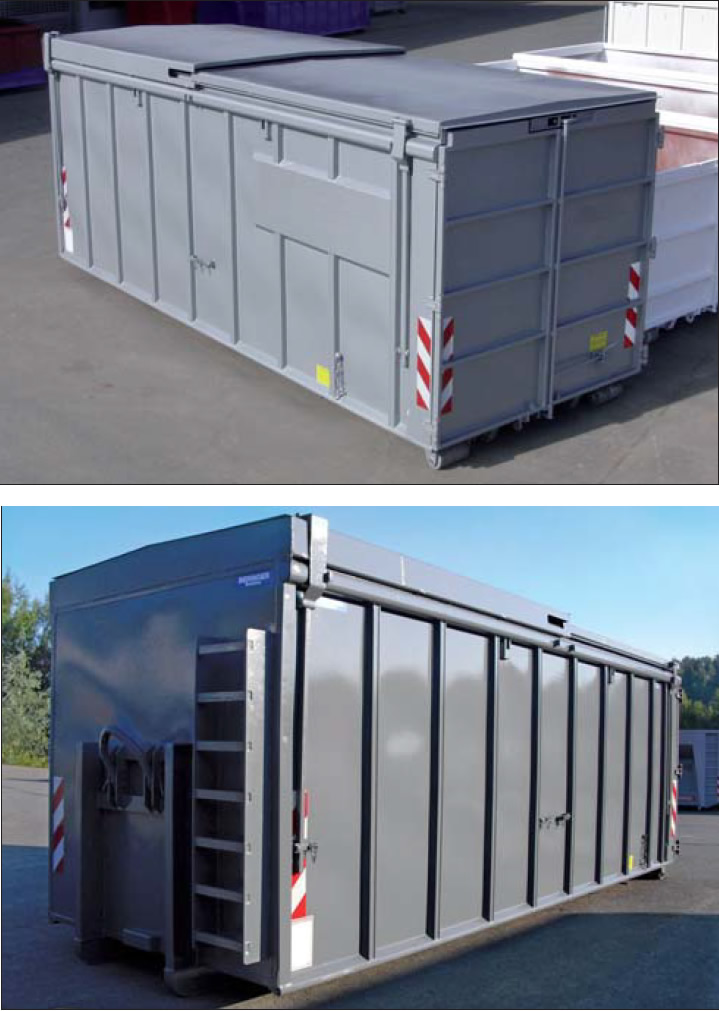

silding lid

  • Divided 2 or 3 times (depend on container length)
  • With bar at side
  • Lockable and changeable
  • With ball-bearings
  • Easy to use and long life-time cycles
  • Made of wear-resistant tarpaulin
  • With galvanized pipe
  • With winder
  • With clamping fixtures and cord

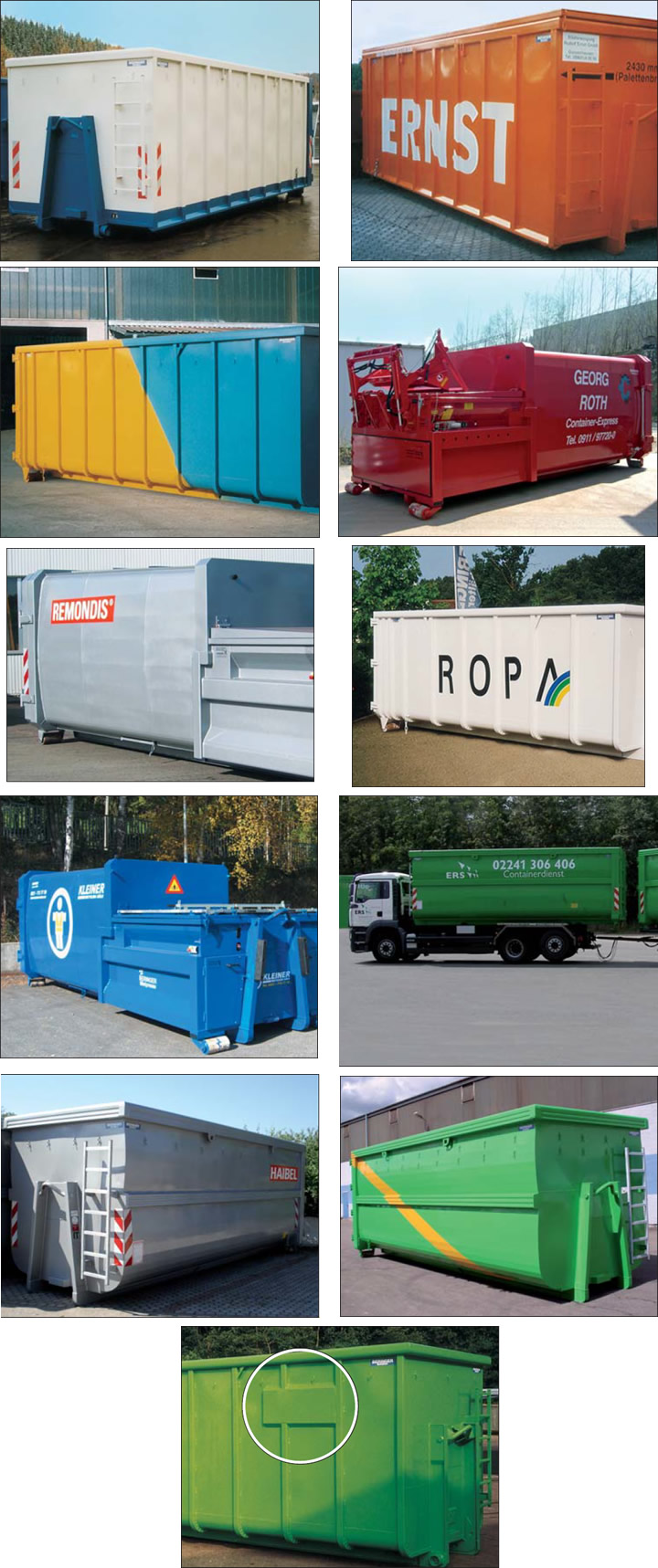

Roll-on Roll-off containers Customized coatings and labeling

Due to the large sidewalls, RoRo containers and skips are the perfect product for advertising space.

We offer a great variety of labeling and multi-colour coating. On the following pictures we would like to give you an impression of our possibilities. Please contact us for your customized requirement.

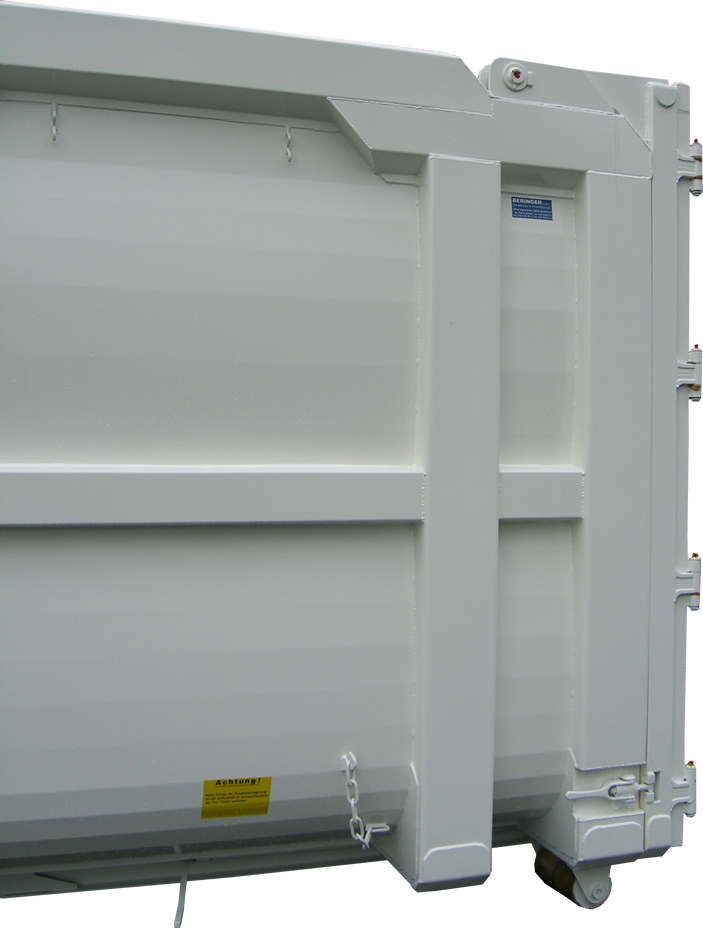

Roll-om Roll-off container doors and locks

Wing door

Without eye bots

With catch and clamp lock

Integrated door lock

Wing door (waterproof)

Without eye bolts

With catch and clamp loch

Container width approx. . 2300 mm

Integrated door lock

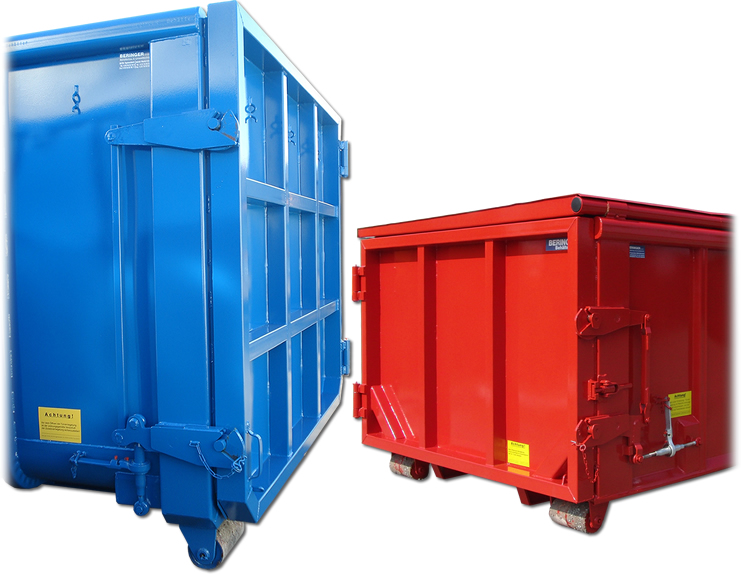

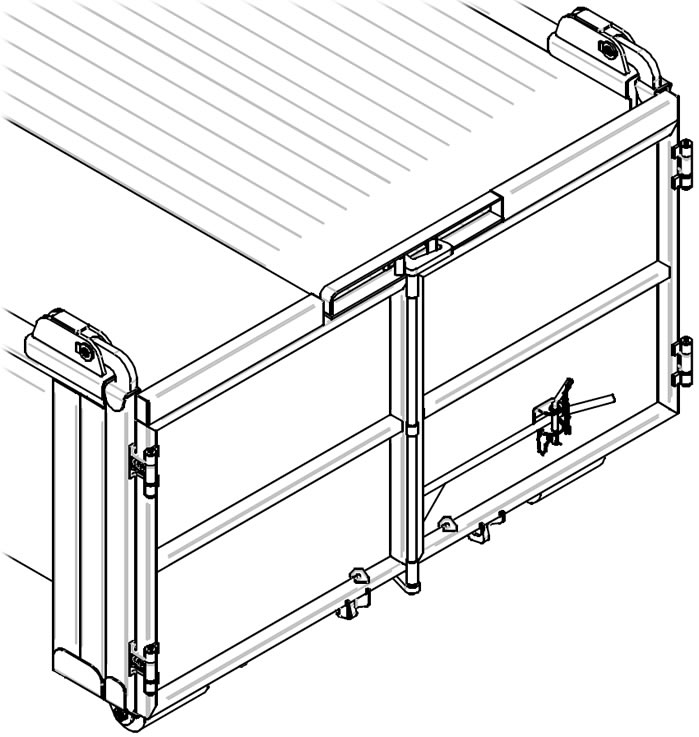

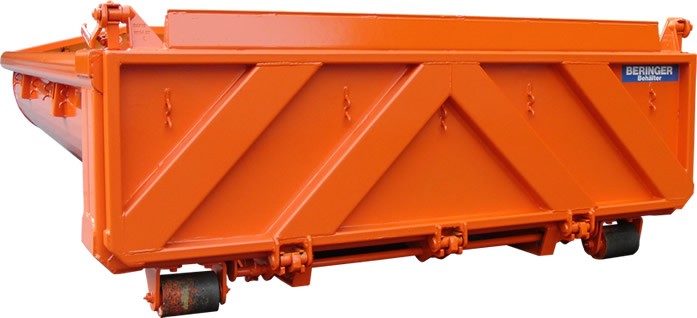

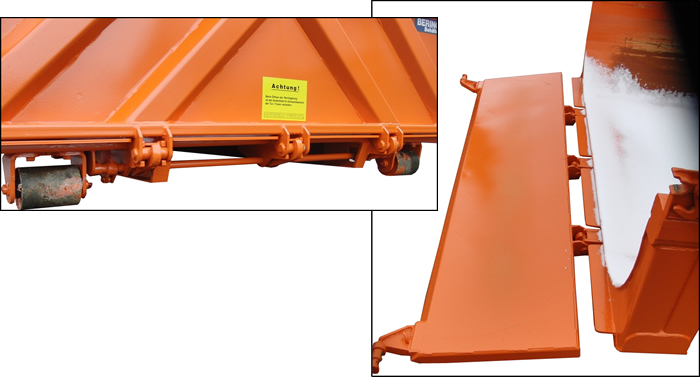

Flap at rear side

Foldable and accessable up to 3 to.

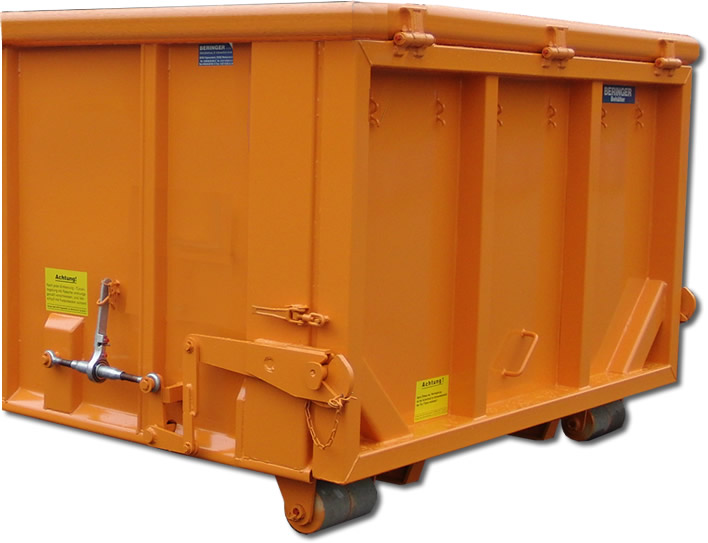

Flap at rear side (waterproof)

Without eye bolts

With catch and clamp lock

Combination of flap and double-wing doors

  • Beringer Top-Lock
