Skip containers Different designs in the most arduous tried and well proven.

skip containers skip open top

  • manufactured according to DIN 30 720 for chain-loader systems
  • asymmetric;
  • Bottom plate 6 mm
  • Side wall plates 4 mm
  • Welded inside and outside without holes,
  • Sheer rail for higher stability;
  • Perforated strip (galvanized) for load safety,
  • Heavy duty tipping profile,
  • Edges double welded,
  • triple tipping device on both sides;
  • set of net hooks welded all around,
  • Primed and coated in RAL colour of your choice

Quality marks

  1. heavy duty tipping device
  2. net hooks
  3. edges reinforced inside and outside
  4. triple tipping device

Customized Skips

  1. BERINGER Skip, customized with reinforcement and drainage plug
  2. BERINGER skip, approx. 15 cbm standard type with two colour coating
  3. BERINGER skip, approx. 17 cbm, open top or with door

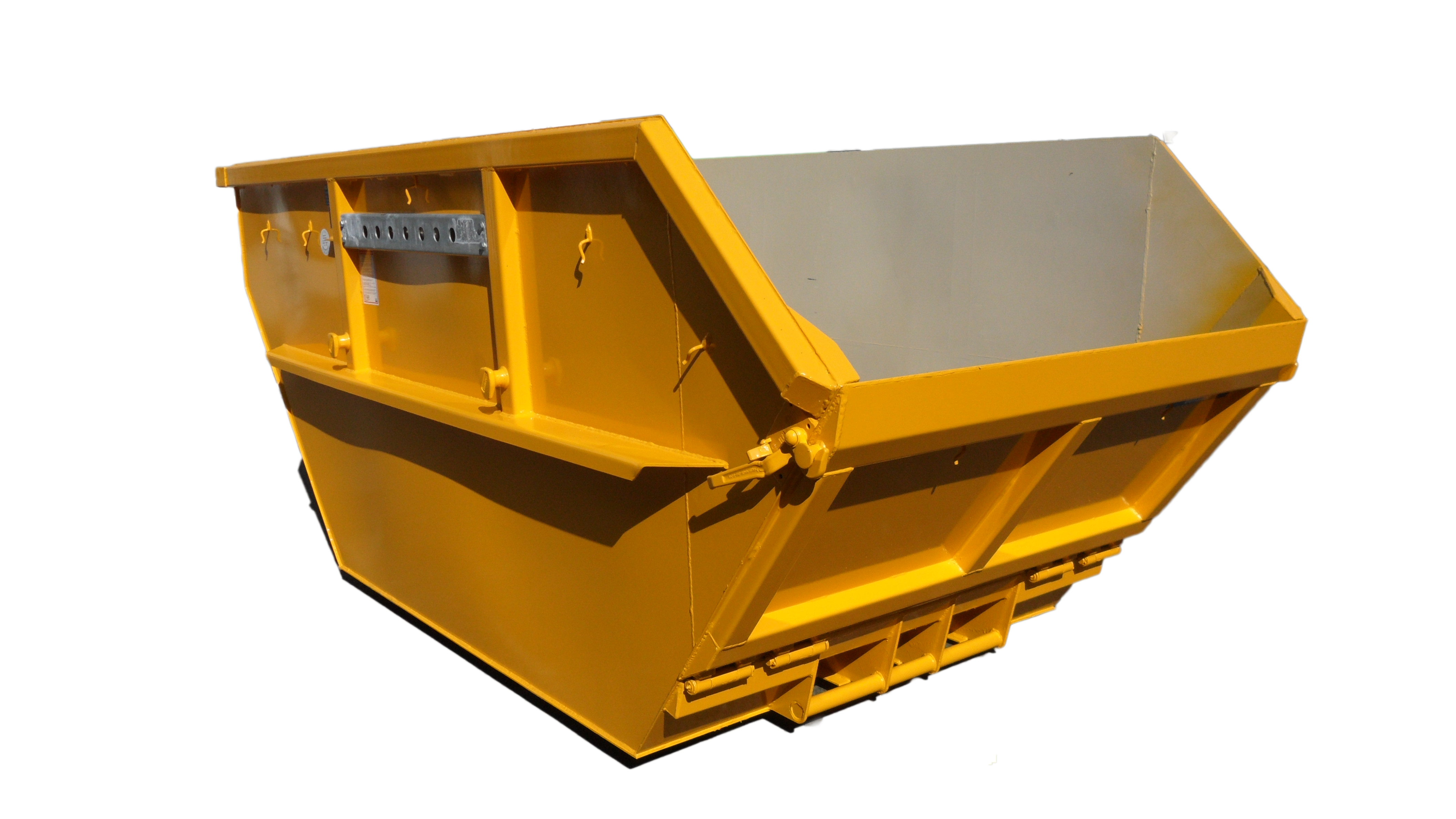

Skip containers Skip open top with foldable front wall

  • Manufactured according to DIN 30 720
  • For chain-loader systems,
  • Asymmetric;
  • Welded inside and outside without holes;
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • Sheer rail for higher stability;
  • Perforated strip (galvanized) for load safety,
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • Triple tipping device on both sides,
  • Set of net hooks welded all around,
  • Foldable front wall traversable;
  • Primed and coated in RAL colour of your choice

Quality marks

  1. Robust but light weight traverse (4 x hinged)
  2. Robust locks with saftety bars
  3. High quality hinges

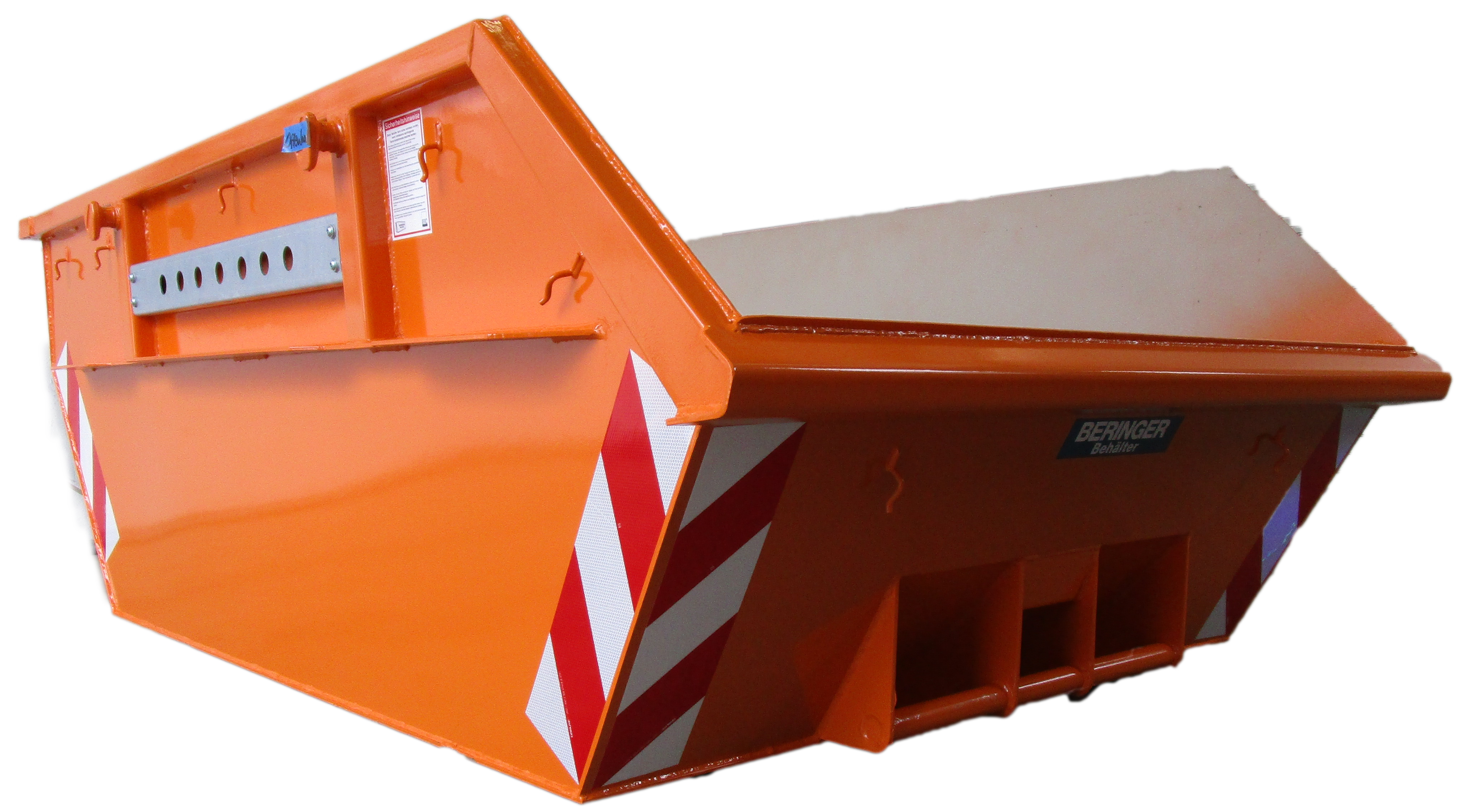

Skip containers Skip open top with low front for construction sites

  • Manufactured according to DIN 30 720 1
  • Asymmetric,
  • Welded inside and outside,
  • Bottom 6mm, Sidewalls 4 mm,
  • Edges reinforced inside and outside,
  • Sheer rail for higher stability;
  • Perforated strip (galvanized) for load safety,
  • Triple-tipping device on both sides;
  • Primed and coated RAL colour of your choice

Skip Containers Skip open top with wing doors and sub frame

  • Manufactured according to DIN 30 720
  • with subframe,
  • bottom 5 mm, sidewalls 3 mm;
  • wing doors at rear side with grease nipples,
  • welded inside and outside,
  • set of net hooks welded all around
  • primed and coated in RAL colour of your choice

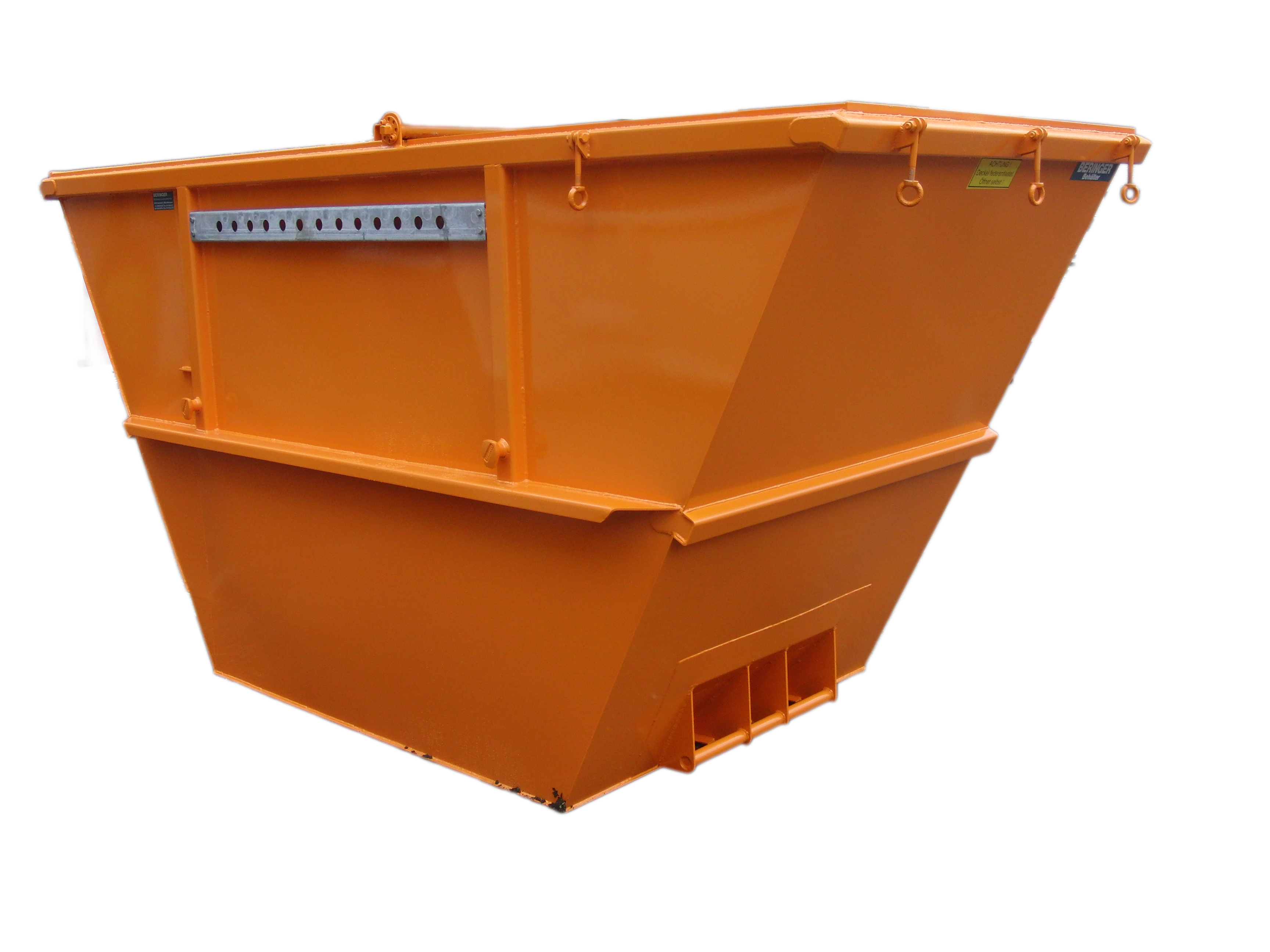

Skip containers Skip open top symmetric

  • Welded inside and outside,
  • Triple tipping device on both sides,
  • Sheer rail for higher stability;
  • Perforated strip (galvanized) for load safety,
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • set of net hooks welded all around
  • primed and coated in RAL colour of your choice
  • Especially for transport of sludge waste and soft / creamy material.
  • Special variation available for transport of hazardous waste



Quality marks

  • Heavy duty tipping device
  • edges reinforced inside and outside
  • high quality wedling construction

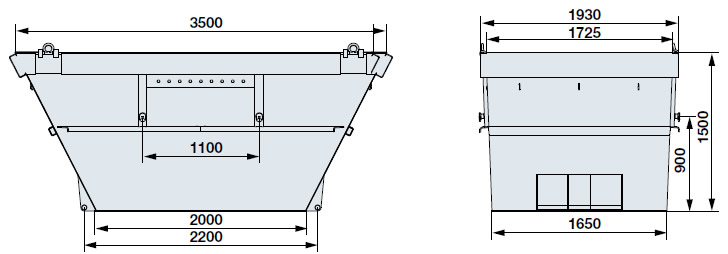

Skip containers Skip open top with crane hooks (RBK 10 t)

  • with EC declaration  of conformity and test book,
  • 4 crane hooks for max. total weight 10.000 kg,
  • Welded inside and outside,
  • Sheer rail for higher stability,
  • Perforated strip (galavnized) for load safety,
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • Primed and coated in RAL colour of your choice



Quality marks

  • Heavy duty fixation points
  • test certificate

Skip Containers Skip covered with steel lids

  • Manufactured according to DIN 30 720
  • For chain loader systems,
  • With spring balanced steel lids
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • Welded inside and outside without holes,
  • Sheer rail for higher stability;
  • Perforated strip (galvanized) for load safety,
  • Heavy duty tipping profile,
  • Edges double welded,
  • Triple tipping device on both sides,
  • Set of net hooks welded all around,
  • Primed and coated in RAL colour of your choice

Quality marks

  1. Triple tipping device
  2. Edges reinforced inside and outside
  3. spring balanced lids

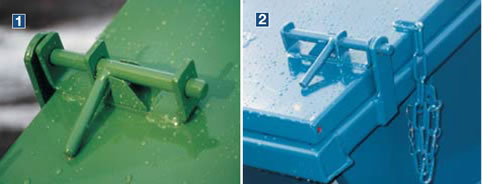

Product advantages

  1. High quality lid locks, screwed hand bars
  2. with bar for padlock

customized solutions - some samples

  1. BERINGER skip, approx. 7 cbm covered with steel lid
  2. BERINGER skip, approx. 15 cbm covered with plastic lid; without perforated strip
  3. BERINGER skip approx. 3 cbm

Skip containers covered with wing doors and sub frame

  • manufactured in the style of DIN 30720
  • Botoom 5 mm and sidewalls made of 3 mm steel sheets S 235
  • Frame made of pipe UB 80/50/5
  • Edges reinforced, tipping device on one side, net hooks, sub frame made of IPN 140
  • doors made of pipes 60/40/4, hinges, greasable
  • Easy balancing  with 6-fold chain bolts
  • slightly gabled roof
  • models with straight or angled front wall possible
  • primed and coated in RAL colour of your choice

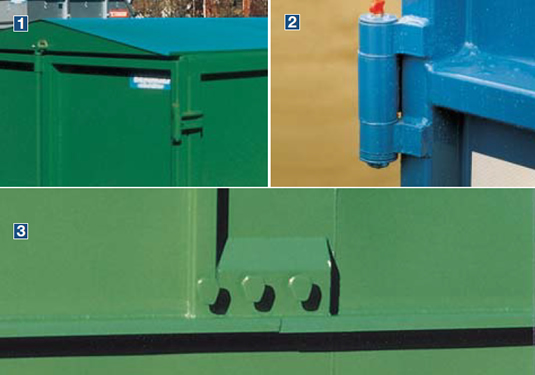

Quality marks

  1. gabled roof
  2. steel hinged
  3. multi fold chain bolts for easy balancing of skip

Skip containers covered symmetric

  • Welded inside and outside,
  • With 2 steel lids;
  • Triple tipping device on both sides,
  • Sheer rail for higher stability;
  • Perforated strip for load safety (galvanized)
  • Bottom plate 6 mm,
  • Side wall plates 4 mm,
  • set of net hooks welded all around,
  • primed and coated in RAL colour of your choice,
  • Especially for transport of sludge waste and soft / creamy material.
  • Special specs. available for transport of hazardous waste

Glass recycling skip 7,0 cbm or 10,0 cbm

  • Manufactured according to DIN 30720
  • Bottom 5 mm; Sidewalls 3 mm;
  • Feed openings ø 180 mm;
  • Tipping device on one side,
  • Partitions (see drawing);
  • Lock for partitions;
  • Primed and coated in RAL colour of your choice
